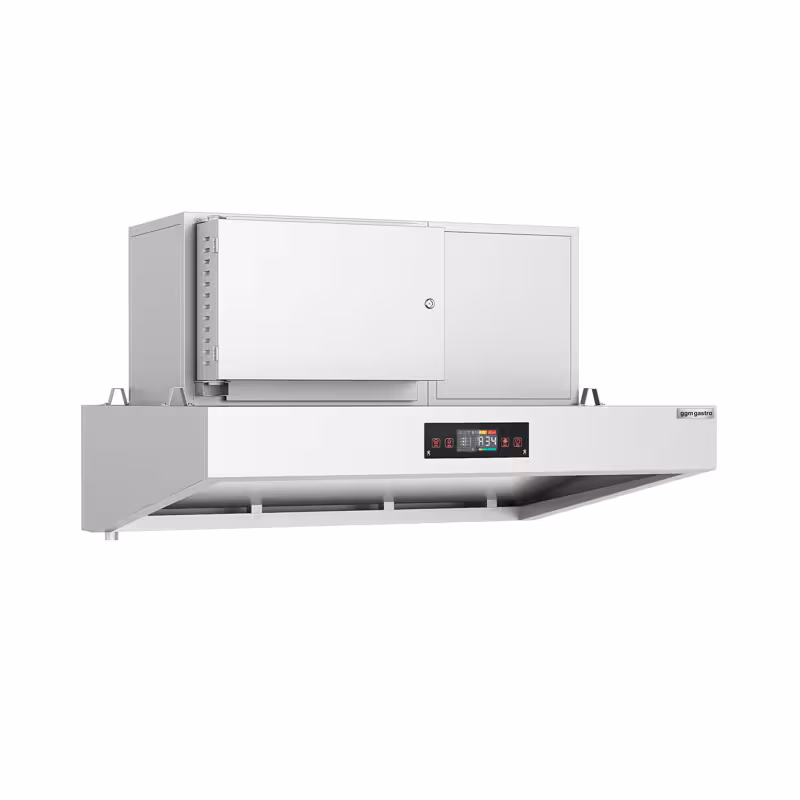

Commercial Plasma Extraction Canopy - 1600mm - Ducted/Recirculating - up to 80% Odour Reduction - Touch Control Panel - LED Lighting
SKU HDHK1611#SET5-stage cleaning
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €2,438.99
** The picture may slightly differ from the original.
Commercial Plasma Extraction Canopy - 1600mm - Ducted/Recirculating - up to 80% Odour Reduction - Touch Control Panel - LED Lighting
SKU HDHK1611#SET5-stage cleaning
Rate now
Print* net price | gross price incl. 0% VAT.: €2,438.99
Accessories (1)
Spare Parts (5)
Product Advantages
- Integrated smoke purification through a hybrid filtration system: Fat and odours are removed with high efficiency, ensuring residue-free exhaust air without oil smoke.
- Maximum fat and smoke separation of up to 98%: Very high cleaning performance guarantees clean air and protects the kitchen from contamination.
- Steam self-cleaning system: Automates the cleaning of the filter cells, thereby reducing maintenance intervals to a minimum.
Description
- Complete set including motor, control unit and UV odour module
- 5-stage filtration
- Maximum grease and smoke separation of up to 98%
- Arc suppression within 0.0001 seconds
Innovative hybrid extractor hood for professional kitchens
This hybrid extractor hood impresses with its high-quality industrial design and offers a complete set with motor, control unit and UV odour module. The contactless gesture control ensures maximum kitchen hygiene, while the soft-touch control panel allows for manual operation. The moisture- and grease-protected LED spotlights guarantee optimal illumination. The housing made of corrosion-resistant stainless steel SS 304 ensures a long service life and easy cleaning.Efficient filtration and safety for commercial kitchens
With a 5-stage filtration, the extractor hood achieves a maximum grease and smoke separation of up to 98%. The integrated electrostatic honeycomb filter cells optimise air purification. The arc suppression within 0.0001 seconds provides the highest safety during use. Ideally suited for commercial kitchens with high emission loads, this appliance meets demanding requirements for cleanliness and efficiency.Installation & Operation
- Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Regular maintenance of the filter cells is required according to the saturation indicator.
- The self-cleaning function significantly extends the manual cleaning cycles.
- UV lamps may only be operated when the housing is completely closed.
- Regular emptying of the oil collection container is mandatory.
- Filter cells may only be reinserted in a dry condition after manual cleaning.
Technical data
Dimensions
| Width | 1.600 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 990 mm |
Details
| Filter type | Hybrid (ESP + UV-C) mit 5-stufige Reinigung |
|---|---|
| Extraction rate | 3.200 m³/h |
| Fat removal efficiency | 98 % |
| Odor reduction level | 80 % |
| UV lamp service life | up to 10.000 h |
| Operating volume | approx. 65 dB |
Connected load
| Power | 1,40 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Partly Mounted |
| Gross weight | 234 kg |
| Net weight | 154 kg |
Download / Exploded drawing
Download / Exploded drawing
Download / Exploded drawing
