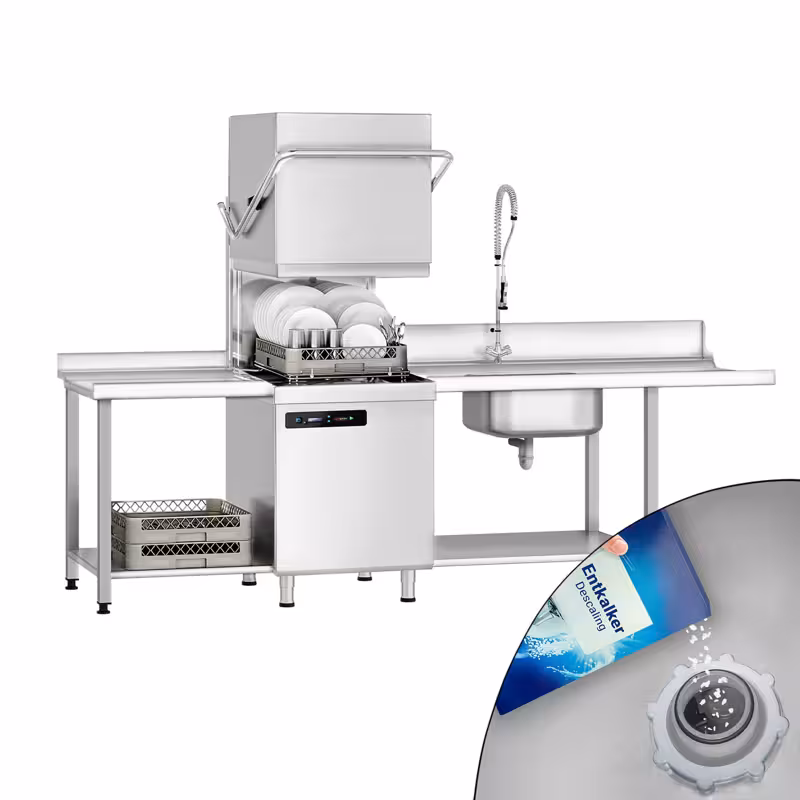

Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump

Insertion height: 430mm
SKU DS430L-EK#SET-L
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
  • Commercial Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table left - with Detergent & Rinse Aid Dosing Pumps, Drain Pump

* The picture may slightly differ from the original.

Guaranteed: Order by 12 noon for immediate dispatch!
€3,908.99 *
RRP €7,569.99
In stock: 1 - 3 Days
Free delivery**
Quantity:
Print* net price | gross price incl. 0% VAT.: €3,908.99
Accessories (8)
Spare Parts (9)

Product Advantages

  • Made in Italy: Represents high-quality workmanship and durable quality.
  • Automatic wash cycle start: Saves time by starting independently after closing the hood.
  • Adjustable runners: Allow flexible input and output options for baskets on all sides.
  • Inlet and outlet tables can be positioned at an angle: Offers variable installation options for optimal space utilisation.
  • Special rinsing system and insulated boiler: Ensure constant temperature and rinse water pressure during operation.
  • Integrated descaling system: Eliminates the need for external descalers and reduces maintenance effort.
  • Built-in stand-by system: Reduces energy consumption during idle times and lowers operating costs.

Description

Efficient pass-through dishwasher for professional kitchens

The double-walled pass-through dishwasher with 7.1 kW power is a powerful freestanding unit, specially designed for use in commercial kitchens. It impresses with its digital control and integrated inlet and outlet tables, which significantly facilitate the workflow. This machine is ideally suited for thorough cleaning of crockery and pots, making it indispensable in gastronomy, canteens and large-scale kitchens.

High-quality equipment and well-thought-out technology

The body and tables made of stainless steel AISI 304 guarantee a long service life and easy cleaning. The machine features double insulation for optimal thermal retention and a wash chamber with a double filtration system that ensures water quality during the washing process. With two rotating wash arms and two rinse arms, an effective and uniform cleaning result is achieved. The integrated pumps for detergent, rinse aid and alkali ensure precise dosing and excellent washing results.

Conclusion and areas of application

This pass-through dishwasher is the perfect solution for professional kitchens that value efficient and hygienic cleaning. Thanks to the safety system on the door opening and the maintenance-free electromechanical control, operation is simple and safe. It is particularly suitable for catering businesses, catering companies and large-scale kitchens that need to wash large quantities of crockery and cookware quickly and reliably.

Installation & Operation

  • ⚠️ Information about the mains voltage can be found in the operating manual.
  • ⚠️ The appliance can be operated with either a hot or cold water connection.
  • ⚠️ The wash programmes work optimally only with a hot water connection.
  • ⚠️ Detailed instructions are available under "Download" and "Video".

Cleaning & Maintenance

  • For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
  • If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
  • The actual maximum flow rate depends on the water hardness.
  • Suitable only for chlorine-free cleaners.

Technical data

Overall dimensions

Width 2.855 mm
Depth 785 mm
Height closed 1.480 mm
Height open 1.950 mm

Dimensions per item

Dimensions push-through dishwasher W x D x H 655 mm x 785 mm x 1.480 mm
Dimensions of feeder table W x D x H 1.200 mm x 700 mm x 850 mm
Dimensions dish spray W x D x H 140 mm x 600 mm x 1.070 mm
Dimensions discharge table W x D x H 1.000 mm x 520 mm x 865 mm
Basin dimensions W x D x H 500 mm x 400 mm x 260 mm

Basket dimensions

Width 500 mm
Depth 500 mm

Rack height

Insertion height 430 mm

Water connection

Water inlet R 3/4"
Water outlet Ja

Details

Inlet water temperature 55 °C
Washing temperature 50 - 60 °C
Purge temperature 82 °C - 85 °C
Max. Crockery height 405 mm

Flushing process

Rinse program 1 Rinse time 60 at max 60 Baskets/h
Rinse program 2 Rinse time 120 at max 30 Baskets/h
Rinse program 3 Rinse time 180 at max 20 Baskets/h
Rinse program 4 Rinse time 480 at max 8 Baskets/h
Water consumption per run 2,60 l

Capacity

Tank capacity 30 l
Boiler capacity 7 l

Connected load

Power 7,10 kW
Voltage 400V
Phase(s) 3N/PE

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 184 kg
Net weight 161 kg

Download / Exploded drawing

Safety and disposal instructions

TUV
