Product Advantages
- Digital display: Facilitates operation through a clear and intuitive interface. This ensures efficient control and monitoring of the washing process.
- Automatic start of the wash cycle: The wash cycle begins automatically after the hood is closed. This minimises operator effort and optimises the process.
- Adjustable running rails: Allow baskets to be loaded and unloaded from all sides. This increases flexibility during loading and unloading.
- Heat recovery: The hot exhaust air is fed back into the water circuit. This reduces electricity consumption and leads to significant energy and cost savings.
- 20% energy savings: The integrated heat recovery significantly lowers energy requirements. This supports sustainable operation and reduces running costs.
Description
Product Overview

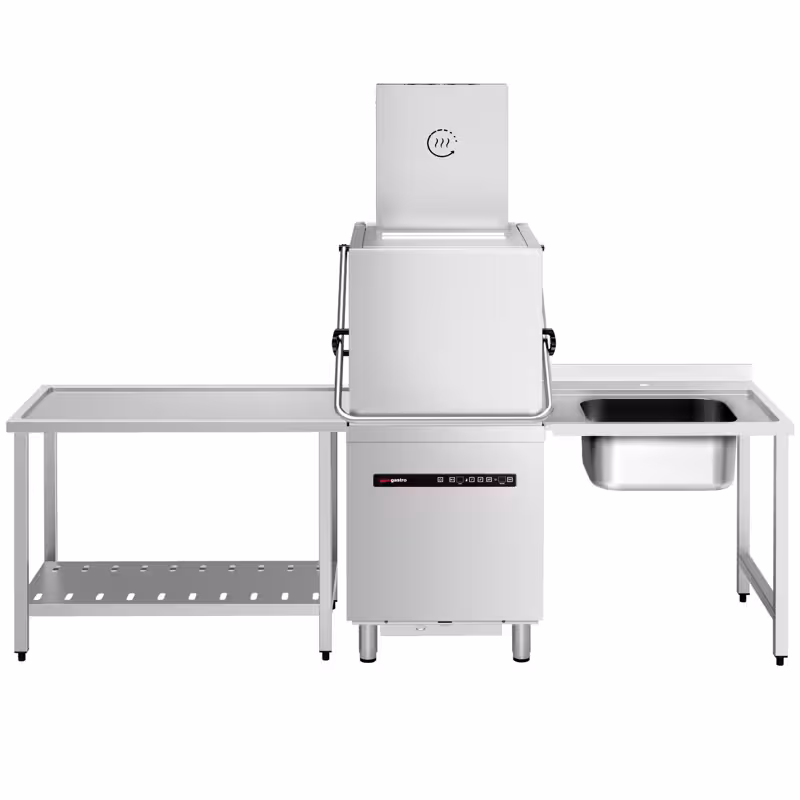

The pass-through dishwasher with digital control and a power output of 8.7 kW is ideal for professional use in gastronomy and large-scale kitchens. It impresses with efficient heat recovery, which saves energy and reduces operating costs. The unit is designed as a freestanding machine and is supplied including a right-hand inlet table and a left-hand outlet table, significantly facilitating the workflow.Product Details
The body is made of high-quality AISI 304 stainless steel, ensuring robustness and durability. Inside the washing chamber, a double filtration system ensures a clean and hygienic wash. The machine features two rotating wash and rinse arms that do not clog, thus providing consistently high washing quality. The electric rinse aid and detergent pumps guarantee optimal dosing. The door opening is equipped with a safety system that ensures safe operation. The digital display allows for user-friendly and intuitive operation.Conclusion and Areas of Application
This pass-through dishwasher is perfectly suited for the fast and thorough cleaning of dishes and pots in large kitchens, canteens, or catering operations. Its efficient heat recovery and powerful pump technology make it a reliable assistant in the daily washing process. Thanks to the well-thought-out features and robust construction, it is the optimal solution for professional dishwashing with high throughput.Installation & Operation
- Information on the mains voltage can be found in the operating manual.
- Please note that the appliance can be operated with both a hot water connection and a cold water connection.
- The values of the wash programmes can only be guaranteed with a hot water connection.
- A detailed manual can be found under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Overall dimensions
| Width | 2.620 mm |
|---|---|
| Depth | 820 mm |
| Height | 2.012 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 400 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Wash temperature | 55 °C |
|---|---|
| Rinse temperature | 85 °C |
Flushing process
| Rinse program 1 | Rinse time 100 at max 36 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 150 at max 24 Baskets/h |
| Rinse program 3 | Rinse time 210 at max 17 Baskets/h |
| Water consumption per run | 3 l |
Capacity
| Tank capacity | 20 l |
|---|---|
| Boiler capacity | 6 l |
Connected load
| Power | 8,70 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 164 kg |
| Net weight | 155 kg |
