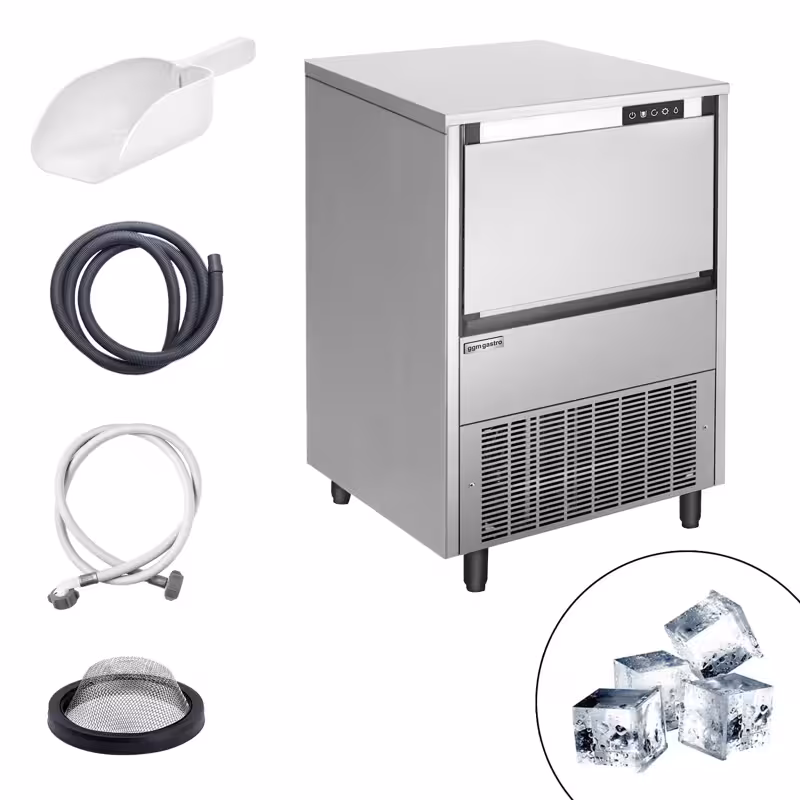

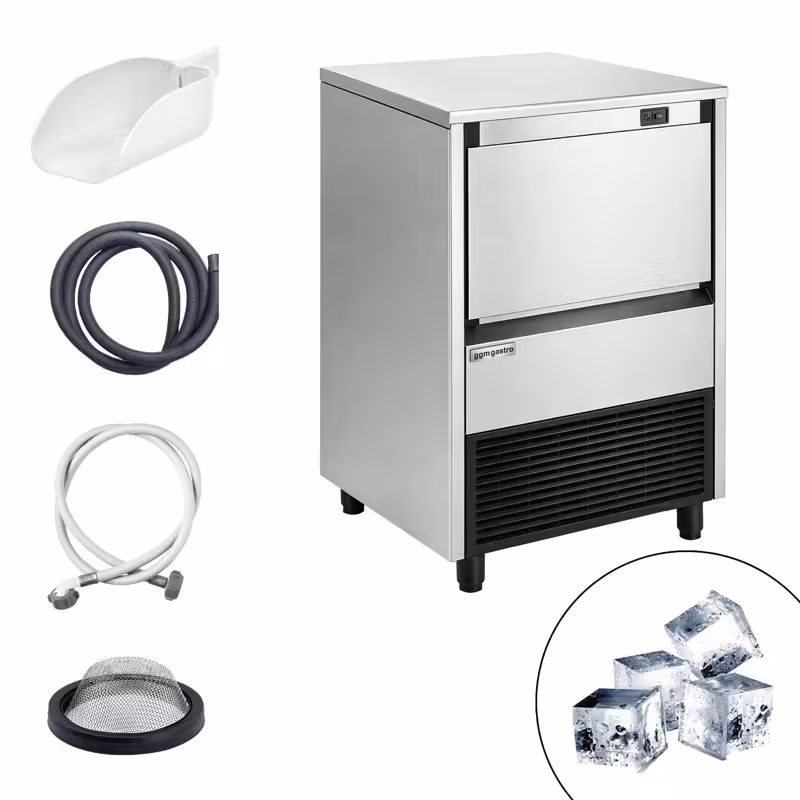

Commercial Ice Machine - Cube - 45 kg/24 h
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Ice Machine - Cube - 45 kg/24 h
Description
- Ice cube mould: full cube or half cube.
- Smart front ventilation system
Efficient ice cube production for professional demands
The ice cube maker produces up to 45 kg of ice cubes per 24 hours in two practical shapes: full cubes of 12 g or half cubes of 6 g. With a container volume of 20 kg, it is ideal for continuous use in gastronomy and commercial settings. The smart front ventilation system ensures optimal cooling and energy efficiency.
Robustness and reliability for demanding environments
The machine features an electronic control that operates reliably even under extreme climatic conditions. The housing made of high-quality AISI 304 stainless steel guarantees durability. Additionally, an elastic coating ensures maximum lifespan. The powerful motor gearbox and the energy-saving design provide strong and consistent cooling with low energy consumption.
Installation & Operation
- This appliance requires a fixed water connection!
- Water drainage is required
- Warning: The integrated containers are not suitable for the permanent storage of ice cubes!
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descaling agents are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technical data
Dimensions
| Width | 535 mm |
|---|---|
| Depth | 595 mm |
| Height | 789 mm |
Details
| Dimensions full ice cube 12 g | 26 x 26 x 25,5 mm |
|---|---|
| Dimensions half ice cube 6 g | 26 x 13 x 25,5 mm |
| Ice production/day | 45 kg |
| Reservoir | 20 kg |
Cooling
| Air temperature | 10 °C ~ 43 °C °C |
|---|---|
| Water connection | 3/4" - External thread |
| Water pressure | Min. bar - max. bar |
| Refrigerant | R290 / 0,11 kg |
Connected load
| Power | 240 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Net weight | 48 kg |
Download / Exploded drawing
