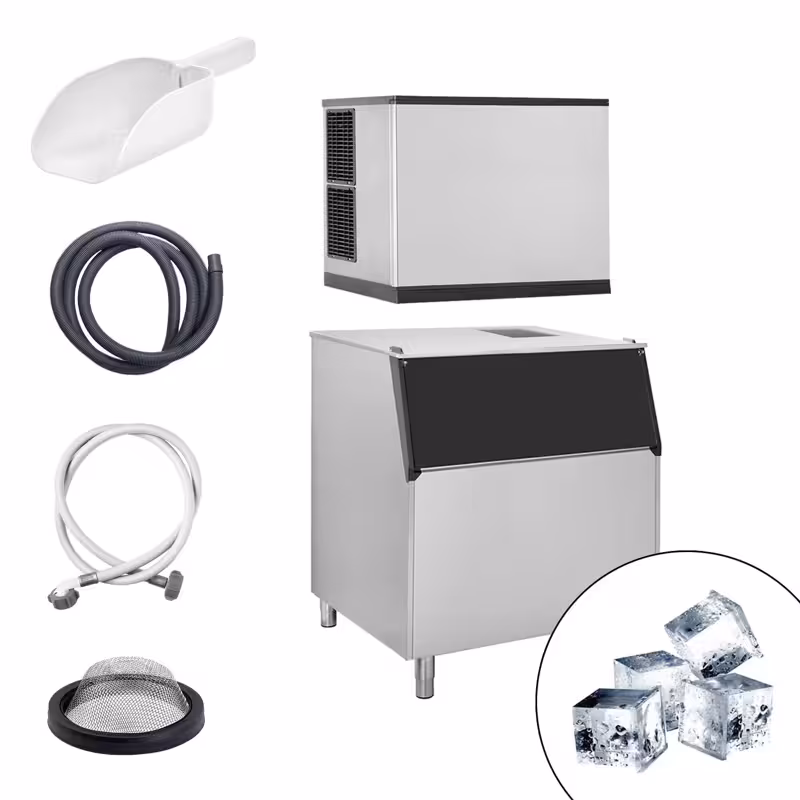

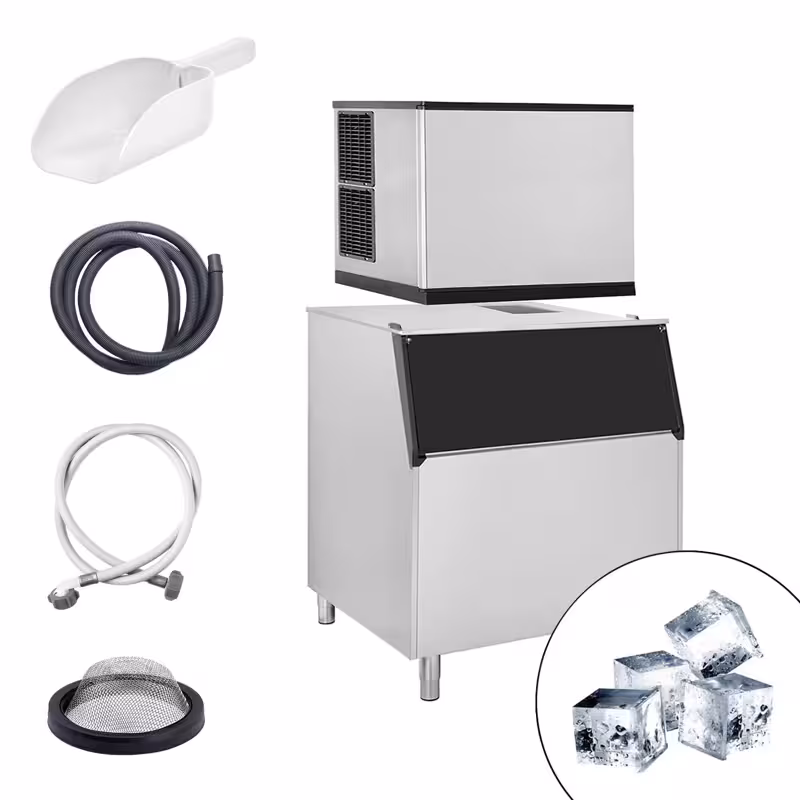

Commercial Ice Machine - Cube - 403 kg/24 h - incl. ice storage container
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Ice Machine - Cube - 403 kg/24 h - incl. ice storage container
Description
- Ice cube mould: full cubes or half cubes
Efficient ice cube production for professional use
The ice cube maker produces up to 403 kg of ice per 24 hours and is equipped with a generous ice storage bin for 350 kg. The machine offers a choice between full cubes of 12 g or half cubes of 6 g, ideal for a variety of applications. Thanks to the electronic control and the on/off switch, operation is simple and convenient.
Robust construction and reliable cooling for the highest demands
The body is made of high-quality AISI 304 stainless steel, ensuring durability and hygiene. The strong and consistently maintained cooling guarantees consistently high ice quality. This device is perfectly suited for professional use in gastronomy, hotels, and events where large quantities of ice are needed quickly and reliably.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descaling agents are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technical data
Overall dimensions
| Width | 1.067 mm |
|---|---|
| Depth | 819 mm |
| Height | 1.984 mm |
Dimensions of the ice cube machine
| Width | 762 mm |
|---|---|
| Depth | 620 mm |
| Height | 760 mm |
Dimensions of the ice storage bin
| Width | 1.321 mm |
|---|---|
| Depth | 872 mm |
| Height | 1.122 mm |
Details
| Dimensions full ice cube 12 g | 26 x 26 x 25,5 mm |
|---|---|
| Dimensions half ice cube 6 g | 26 x 13 x 25,5 mm |
| Ice production/day | 403 kg |
| Container capacity | 350 kg |
Cooling
| Ambient temperature | 5 °C ~ 40 °C |
|---|---|
| Water pressure | Min. bar - max. bar |
| Water connection | 3/4" inches |
| Refrigerant | R452a |
Connected load
| Power | 1,54 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Delivered as | Mounted |
|---|---|
| Shipping method | Haulage |
| Gross weight | 180 kg |
| Net weight | 159 kg |
Download / Exploded drawing
