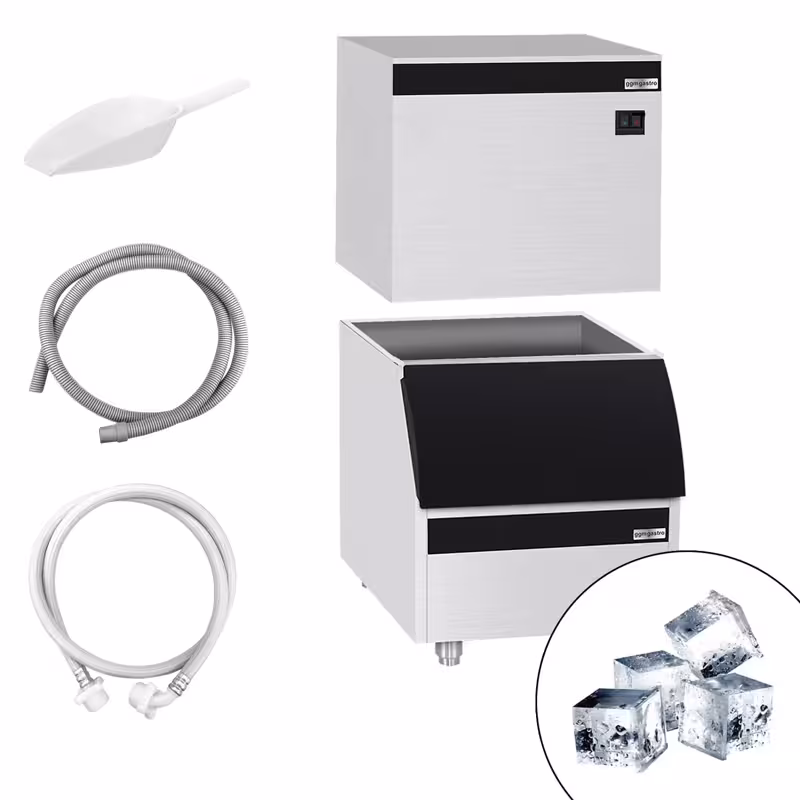

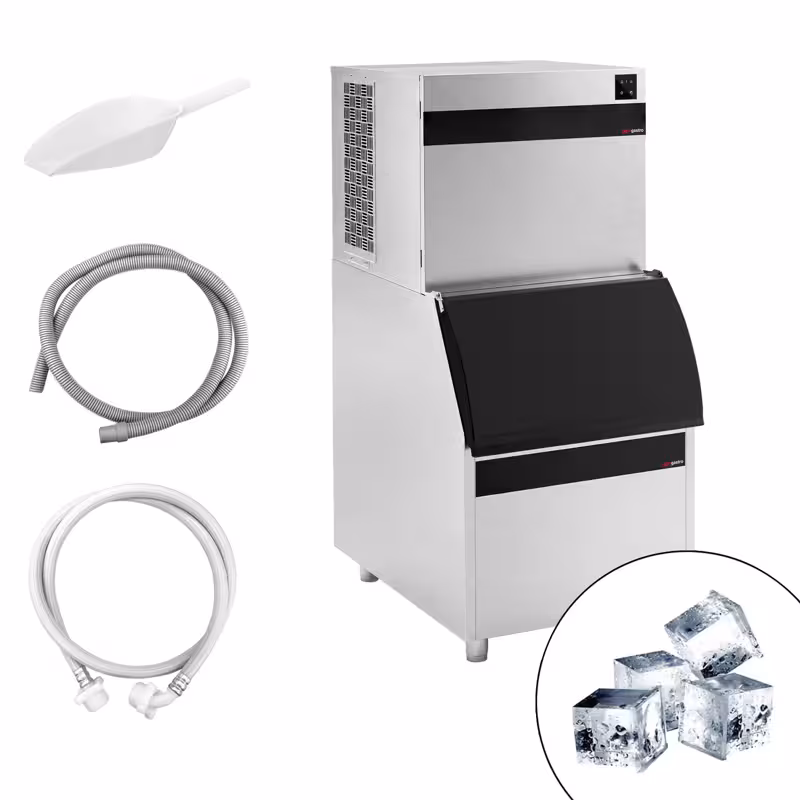

Commercial Ice Machine - Cube - 230 kg/ /24 h incl. storage container
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Ice Machine - Cube - 230 kg/ /24 h incl. storage container
Description
- High-quality touchscreen display
- Strong and consistently maintained cooling
Efficient ice cube makers for professional requirements
The ice cube maker reliably produces up to 230 kg of ice cubes per 24 hours and is equipped with a generous storage container. The high-quality touchscreen display allows for easy and intuitive operation. Thanks to the electronic control, the operation is optimally regulated to always ensure the best results. The body made of high-quality AISI 304 stainless steel guarantees durability and an appealing design.
Powerful and versatile
The ice cube maker is excellent for professional use, for example in gastronomy, hotels or bars. The strong and consistently maintained cooling guarantees consistently high ice quality. With an ice storage container of 210 kg, flexible and efficient storage of ice cubes is possible, optimally covering demand during peak times.
Installation & Operation
- Water drainage is required.
- A 25 amp fuse is necessary for this appliance.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler in advance, please note that the cartridge must be regenerated after approximately 230 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technical data
Dimensions
| Width | 762 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.690 mm |
Dimensions of Ice Cube Maker
| Width | 762 mm |
|---|---|
| Depth | 622 mm |
| Height | 575 mm |
Storage container dimensions
| Width | 732 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.115 mm |
Details
| Ice production per cycle | 260 (12 g) / 360 (6 g) pieces |
|---|---|
| Dimensions full ice cube 12 g | 22 x 22 x 22 mm |
| Dimensions half ice cube 6 g | 22 x 10 x 28 mm |
| Refrigerant | R290 / 0,14 kg |
| Ambient temperature | 10 °C ~ 32 °C |
| Water pressure | Min. bar - max. bar |
| Water connection | 3 "/4 " Inch |
| Container capacity | 210 kg |
| Ice production/day | 230 kg |
| Cooling factor | Ventilation |
| Climate class | T |
Connected load
| Power | 1,20 kW |
|---|---|
| Voltage | 230V |
| Amperage | 16 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 135 kg |
| Net weight | 157 kg |
Download / Exploded drawing
