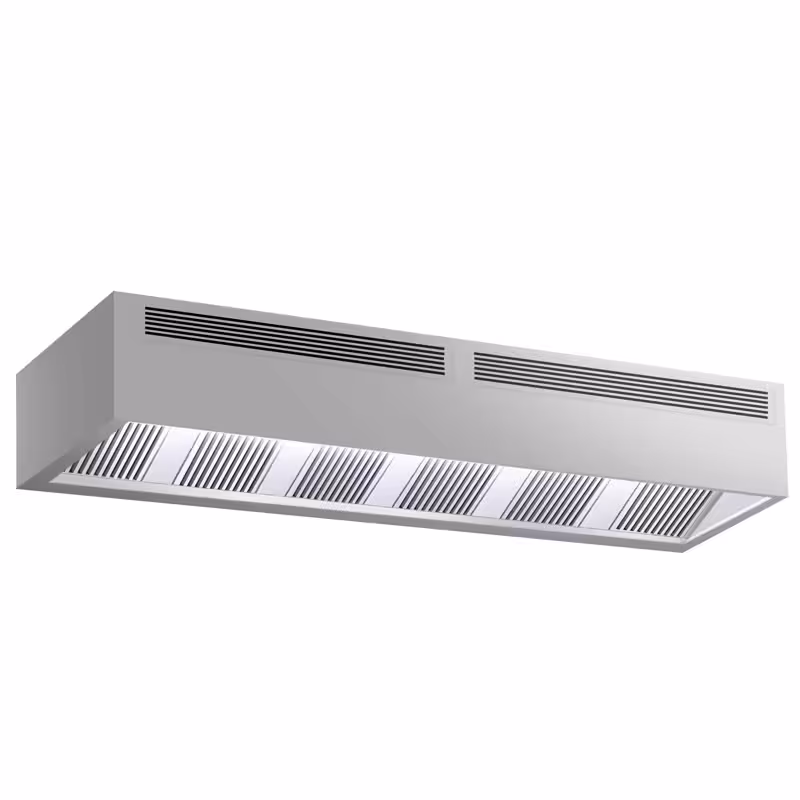

Commercial Extraction Canopy - Wall-Mounted - 3600mm - without Motor (for External Fan) - with Grease Filters - Induction Series
SKU IWHK3611Installation depth: 1100 mm
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €2,879.99
** The picture may slightly differ from the original.
Commercial Extraction Canopy - Wall-Mounted - 3600mm - without Motor (for External Fan) - with Grease Filters - Induction Series
SKU IWHK3611Installation depth: 1100 mm
Rate now
Print* net price | gross price incl. 0% VAT.: €2,879.99
Accessories (3)
Spare Parts (1)
Product Advantages
- Two-stage system: It extracts warm kitchen exhaust air and simultaneously directs fresh outside air back at the hood body. This ensures effective air circulation.
- Higher efficiency: The capture rate is significantly higher, resulting in less steam escaping sideways from the hood. This improves the air quality in the kitchen.
- Better cleanliness: Vapours are captured more precisely, so less grease deposits on surfaces outside the extraction area. This makes cleaning easier.
- Less draught: The air is expelled directly at the hood, reducing unpleasant air currents in the rest of the room. This increases comfort.
Description
Product Overview
The induction canopy hood with a length of 3600 mm is specifically designed for use in the gastronomy sector. It impresses with its compact and robust construction, ensuring a long service life and high durability. Thanks to the absence of a motor, it is ideal for customised ventilation systems or connection to existing extraction systems. The integrated filters provide effective air purification and improve the indoor climate in professional kitchens.Product Details
The hood is made from high-quality AISI 304 stainless steel, known for its durability and ease of cleaning. The spot-welded construction guarantees a stable single-block structure that convinces both visually and functionally. For optimal visibility, the integrated LED lighting is energy-efficient and long-lasting. This combination of material and workmanship makes the hood particularly resistant to corrosion and the demanding requirements of the gastronomy sector.Conclusion and Areas of Application
In summary, this induction canopy hood offers an efficient and durable solution for professional kitchens that value quality and functionality. It is ideally suited for restaurants, large-scale kitchens, and catering operations requiring a powerful and low-maintenance hood without a built-in motor. Its filter function and robust construction contribute significantly to a clean and hygienic working environment.Installation & Operation
- Pipe diameters should always remain consistent or only be professionally planned to be reduced. Incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in commercial dishwashers.
- Daily cleaning prevents burning in/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- For heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinstalled to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 3.600 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Appliance type | extractor hood |
|---|---|
| Exhaust air capacity | 3.600 m³/h |
| Supply air flow rate | 2.500 m³/h |
| Number of filters | 6 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 143,40 kg |
| Net weight | 119,50 kg |
Safety and disposal instructions
Safety and disposal instructions
Safety and disposal instructions
