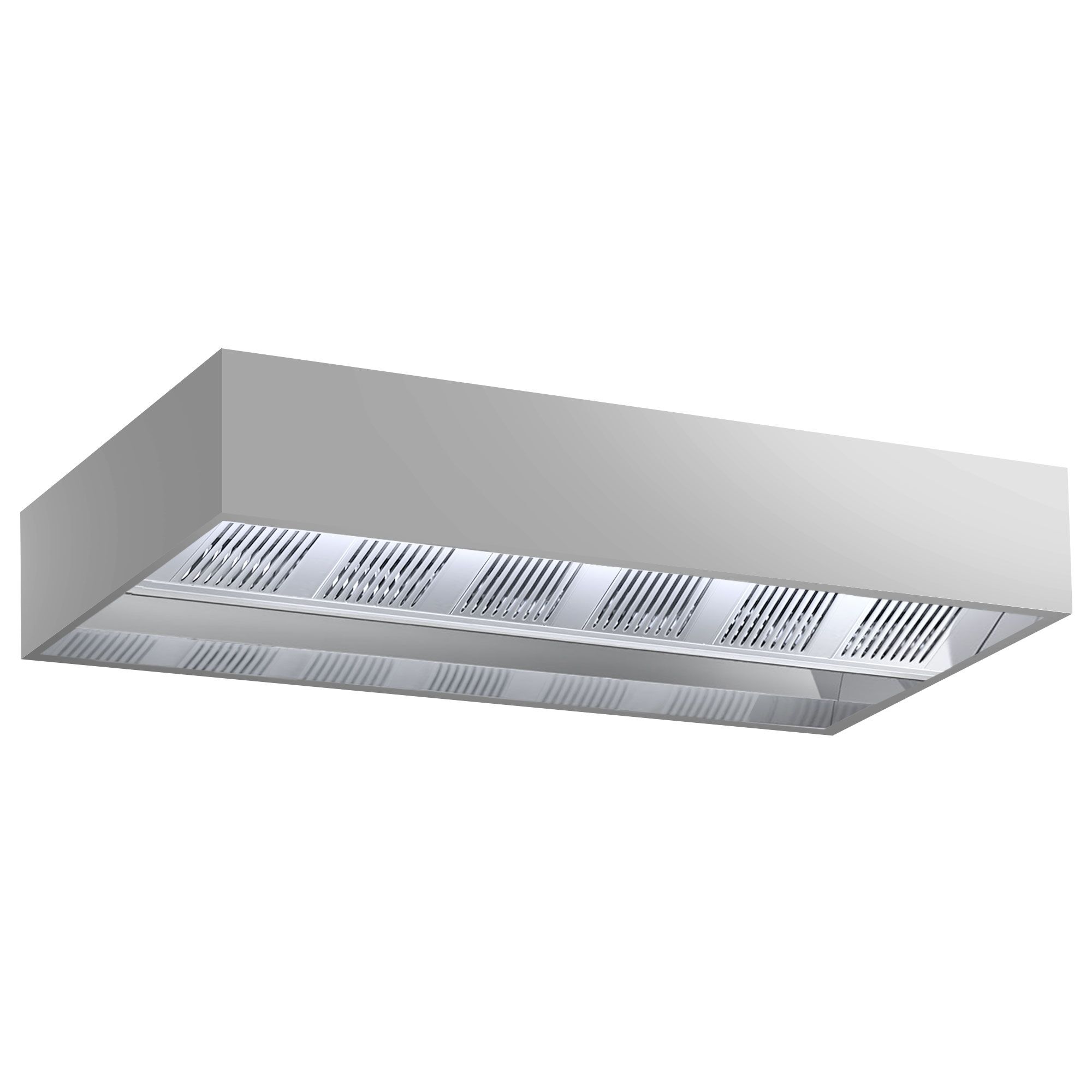

Commercial Extraction Canopy - Ceiling-Suspended - 3500mm - without Motor (for External Fan) - with Baffle Filters - Induction Series
SKU IDHK3518Installation depth: 1800 mm
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €4,199.99
** The picture may slightly differ from the original.
Commercial Extraction Canopy - Ceiling-Suspended - 3500mm - without Motor (for External Fan) - with Baffle Filters - Induction Series
SKU IDHK3518Installation depth: 1800 mm
Rate now
Print* net price | gross price incl. 0% VAT.: €4,199.99
Accessories (3)
Spare Parts (1)
Product Advantages
- Two-stage system: It extracts warm kitchen exhaust air while simultaneously directing fresh outside air directly to the hood body. This ensures effective air circulation.
- Higher efficiency: The capture rate is significantly higher, resulting in less vapour escaping at the sides of the hood. This improves the air quality in the kitchen.
- Better cleanliness: Vapours are captured more precisely, leading to less grease depositing on surfaces outside the extraction area. This makes cleaning easier.
- Less draught: The air is expelled directly at the hood, causing fewer unpleasant air currents in the rest of the room. This increases comfort in the kitchen area.
Description
Product Overview
The induction ceiling hood with a length of 3500 mm is a high-quality solution for professional kitchen ventilation. It is designed without a motor and comes with a filter, making it ideal for use in large-scale kitchens where powerful extraction is required. Its ceiling hood design provides a space-saving and efficient way to capture vapours and grease directly at the source.Product Details
The hood impresses with its high-quality workmanship, featuring spot-welded joints that ensure robustness and durability. A drip-free, hermetic gutter safely collects grease and allows for easy cleaning and maintenance through integrated drain taps. The surface is Scotch-Brite satin finish, which is not only visually appealing but also facilitates cleaning. Integrated LED lighting ensures optimal visibility. The entire construction is made from AISI 304 stainless steel, known for its corrosion resistance and hygiene in the gastronomy sector.Conclusion and Areas of Application
This ceiling hood is perfectly suited for professional kitchens, canteens, or large-scale kitchens that require reliable and hygienic extraction. It convinces with its durable construction and easy maintenance. Thanks to the integrated grease collection gutter and LED lighting, the workspace is optimally supported. Overall, the hood offers an efficient solution for air purification and significantly improves the working environment in the gastronomy industry.Installation & Operation
- Pipe diameters should always remain consistent or only be professionally planned to be reduced. Incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in commercial dishwashers.
- Daily cleaning prevents burning in/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- For heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinstalled to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 3.500 mm |
|---|---|
| Depth | 1.800 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Exhaust air capacity | 5.400 m³/h |
|---|---|
| Supply air flow rate | 3.800 l |
| Number of filters | 12 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 230,40 kg |
| Net weight | 192 kg |
