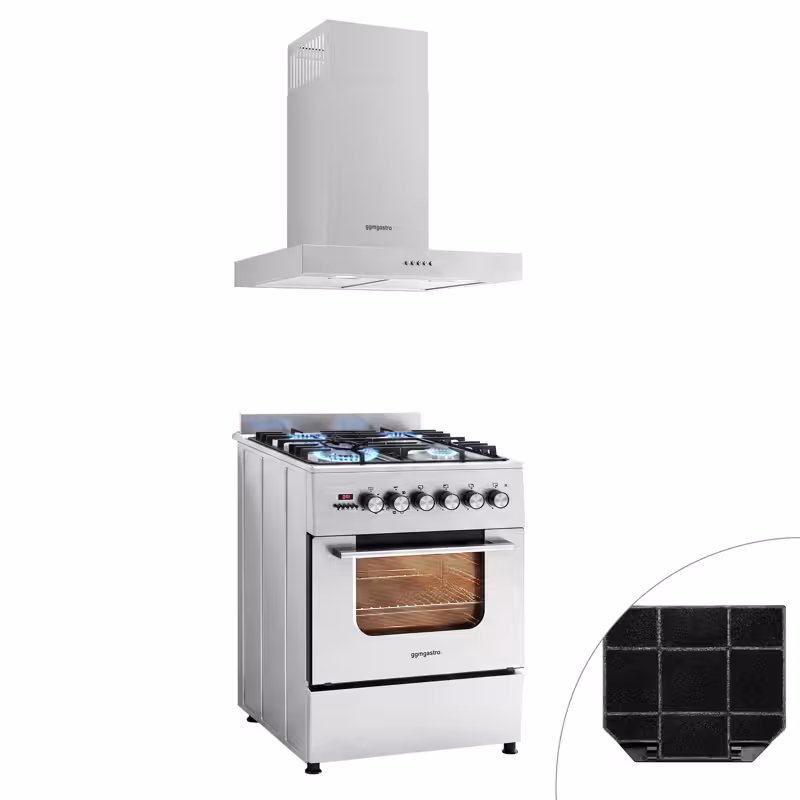

Commercial Dual Fuel Oven Range Cooker - 8,4 kW - 4 Burners – 600 mm – with Electric Oven - 3.85 kW & Recirculation Hood

SKU GHF4#UHF595Depth: 645 mm
Rate now

** The picture may slightly differ from the original.

559,99 € *
RRP €1,009.99
Delivery time: 5 - 6 Weeks
Free delivery**
Print* net price | gross price incl. 0% VAT.: €559.99

** The picture may slightly differ from the original.

Accessories (4)

Product Advantages

  • Optimal space and workflow efficiency: Saves floor space through vertical equipment arrangement and enables particularly short working distances.

Description

  • Set consisting of gas cooker, electric oven, and recirculation hood
  • Digital display for clock and timer
  • Each burner is individually adjustable
  • Oven with interior lighting
  • Ergonomic rotary controls

Powerful gas cooker with versatile oven

The gas cooker offers a total output of 8.4 kW and is equipped with four individually adjustable burners. The integrated electric oven has a power output of 3.85 kW and practical interior lighting that facilitates monitoring the cooking process. The digital display for clock and timer ensures precise time control. Ergonomic rotary controls allow for simple and safe operation. The set also includes a recirculation hood with an activated carbon filter, providing effective air circulation.

Optimal equipment for professional kitchens

This set is ideal for demanding kitchen environments and impresses with numerous safety and comfort features. The thermocouple monitors the flame and automatically shuts off the gas supply if it goes out. Height-adjustable stainless steel feet and a drip-free, hermetically sealed grease collection tray with drain taps facilitate cleaning and adaptation to various work surfaces. The recirculation hood ensures a pleasant indoor climate. Overall, the set offers a reliable and efficient solution for versatile cooking and baking.

Installation & Operation

  • ⚠️ Please note that a minimum distance of approximately 15 cm must be maintained from rear and side walls as well as neighbouring large appliances to ensure adequate air circulation of waste heat.
  • ⚠️ All gas appliances must be installed by a qualified professional.
  • Suitable for LPG connection, nozzles for conversion to natural gas are included.
  • An extraction system is recommended for optimal performance and use.
  • Pipe diameters should always remain consistent or only be reduced with professional planning.
  • Incorrect reduction can affect the entire system.
  • ⚠️ Minimum distance to the stove: 65 cm

Cleaning & Maintenance

Cleaning Gas Cooker & Oven:
  • We recommend cleaning the appliance with washing liquor, lukewarm water, and a soft cloth or sponge, and drying it with a cloth.
  • Ensure you wipe in one direction to keep the surface clean, shiny, and scratch-free.
Cleaning Recirculation Hood:
  • Clean surfaces with a soft, damp cloth; do not use abrasive or aggressive cleaning agents.
  • Maintain stainless steel surfaces with suitable stainless steel cleaners.
  • Clean grease filters regularly (approximately every 40 hours of operation); daily cleaning prevents the filters from burning on and becoming resinous.
  • Aluminium filters are dishwasher safe (maximum 60 °C).

Technical data

Dimensions gas stove

Width 598 mm
Depth 633 mm
Height 845 mm

Internal dimensions of oven

Width 468 mm
Depth 377 mm
Height 320 mm

Dimensions of the recirculating hood

Width 595 mm
Depth 480 mm
Height 628 mm

Gas Stove Details

Number of burners 4
Grate dimension 451 mm x 370 mm
Max. Gas pressure 50 bar
Gas type Liquid gas (LPG)

Details: Recirculating Hood

Colour Stainless Steel
Operation manual
Number of programs 4
Air turnover per hour 564 m³
Fat removal efficiency 61 %
Operating volume 60 dB
Speed level(s) 3
Energy efficiency class A++

Connected load

Operating mode Gas & Electric
Power of gas stove/oven 12,25 kW
Recirculating range hood power 90 Watt
Voltage 230V
Phase(s) 1N~/PE

Average consumption

Kcal/h 7223
Btu/h 28681
Propane gas (G30 / G31) 0,61 kg/h
Natural gas H (G20) 0,782 m³/h
Natural gas L ( G25 ) 0,919 m³/h

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 42 kg
Net weight 39 kg

Download / Exploded drawing
