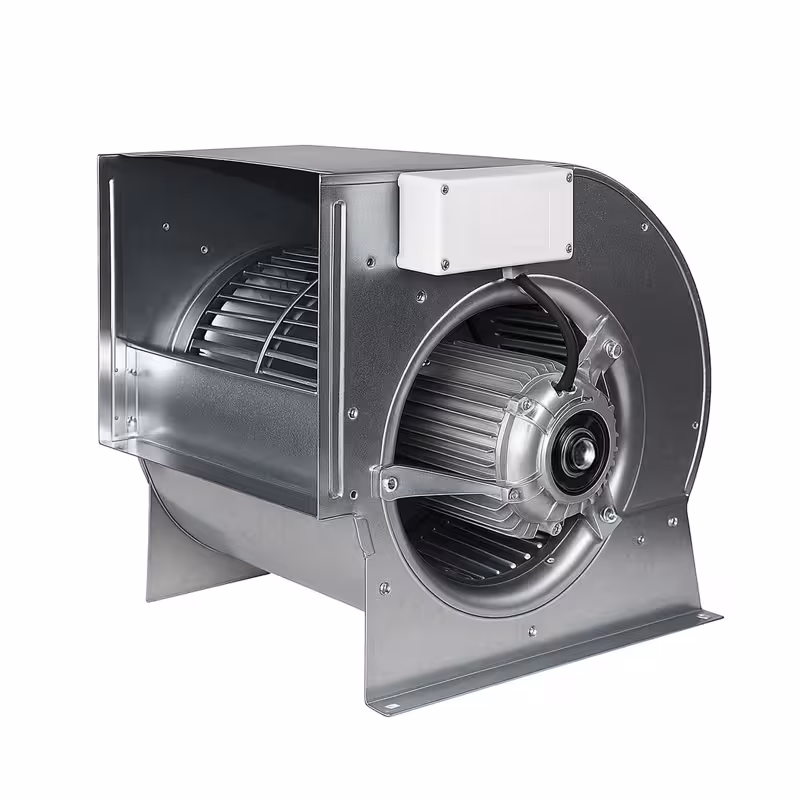

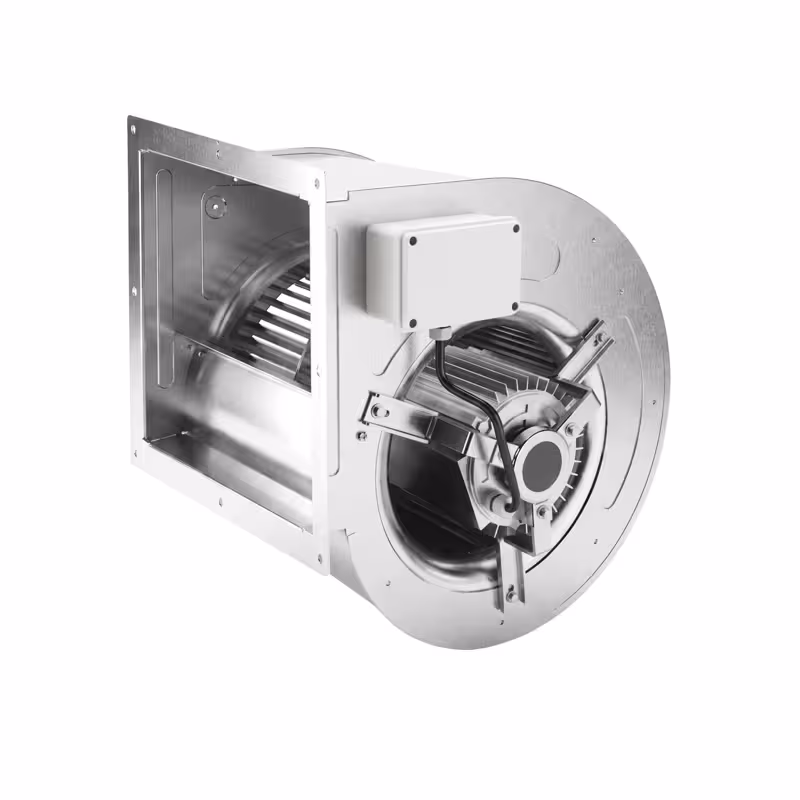

Commercial Centrifugal Extract Fan 4500 m³/h - for Fan Box
SKU RS4500DAIN 12/12 XPL 201100A 1F 6P 1V +SB
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €519.99
** The picture may slightly differ from the original.
Commercial Centrifugal Extract Fan 4500 m³/h - for Fan Box
SKU RS4500DAIN 12/12 XPL 201100A 1F 6P 1V +SB
Print* net price | gross price incl. 0% VAT.: €519.99
Accessories (2)
Product Advantages
- High pressure build-up: Generates an enormous static pressure that reliably transports air even through highly branched ducts or dense filter systems.
- Less sensitive to contamination: Minimal dirt deposits make it ideal for greasy kitchen extraction air as well as dusty industrial air.
- Robust and durable construction: The motor is positioned outside the direct airflow and is thus optimally protected against heat, moisture, and aggressive vapours.
Description
- Built-in motor for wall-mounted hoods
- Self-aligning lubricant nozzle
Efficient radial fan for optimal air circulation
The radial fan offers a TOP performance of 4,500 m³ per hour and impresses with low energy consumption. Its quiet operation makes it ideal for use in various air duct systems. The construction from galvanised steel ensures high durability and robustness. Additionally, the unit is practically maintenance-free and can be quickly installed thanks to the easy assembly.Sustainable technology for versatile applications
This radial fan is environmentally friendly and specially designed for use in wall-mounted hoods. The self-aligning lubricant nozzle guarantees reliable lubrication without additional effort. Without a speed controller and feet, the device offers a compact design that can be easily integrated into existing systems. Ideally suited for industrial and commercial applications where efficient air conveyance is required.Installation & Operation
- ⚠️ Installation should be carried out by a professional to accurately calculate the airflow performance against the duct resistance, and to install vibration dampers to prevent intolerable vibration noise.
- ⚠️ To prevent possible damage to the motor and/or the device, it is essential to connect the thermal protection to the speed controller, provided the wiring diagram shows two designated lines for this purpose.
- For single-phase motors, the thermal protection is often integrated within the motor, so no external connections to the speed controller are required.
- Before commissioning the fan and/or device, always carefully check the electrical connections. These may be located on the fan/device itself or in the terminal box.
- Damage caused by faulty electrical connections is excluded from the warranty.
Technical data
Dimensions
| Width | 464 mm |
|---|---|
| Depth | 498 mm |
| Height | 456 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air turnover per hour | 4.500 m³ |
| Temperature | -20 °C to 40 °C |
Connected load
| Power | 746 Watt |
|---|---|
| Voltage | 230V |
| Frequency | 50 Hz |
| Phases | 1N~/PE |
| Amperage | 7,70 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 33 kg |
| Net weight | 28 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
