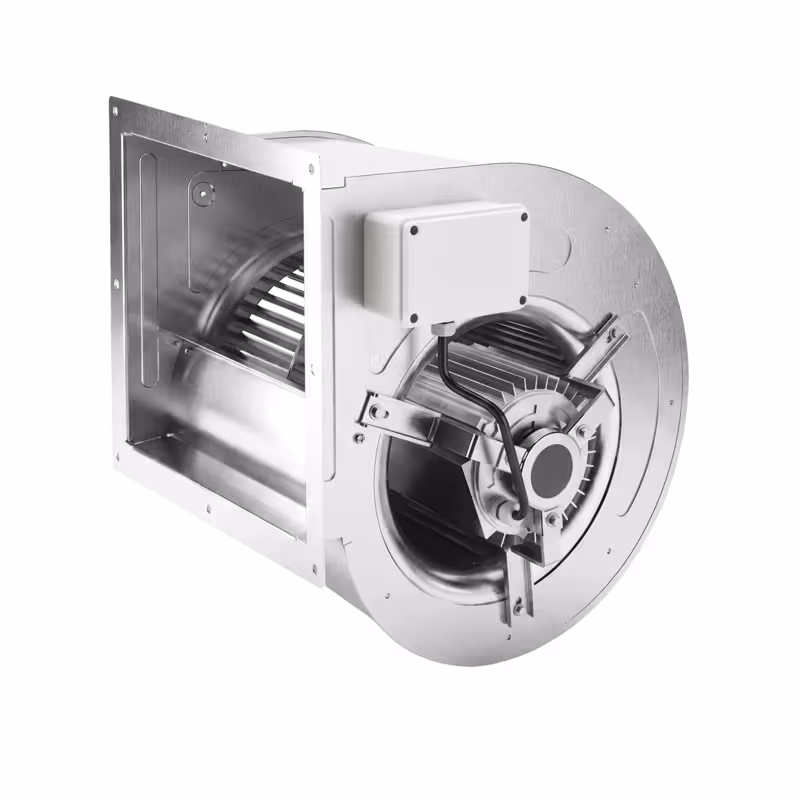

Commercial Centrifugal Extract Fan 10000 m³/h - rpm 900 - for Fan Box
SKU RS10000 DAIN 15/15 201100E 3F 6P 1V +SB
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €704.99
** The picture may slightly differ from the original.
Commercial Centrifugal Extract Fan 10000 m³/h - rpm 900 - for Fan Box
SKU RS10000 DAIN 15/15 201100E 3F 6P 1V +SB
Print* net price | gross price incl. 0% VAT.: €704.99
Accessories (1)
Product Advantages
- High pressure build-up: Generates enormous static pressure, which transports air even through highly branched ducts or dense filter systems.
- Less sensitive to contamination: Hardly any dirt deposits, ideal for greasy kitchen exhaust air or dusty industrial air.
- Robust and durable construction: The motor is located outside the direct airflow and is thus optimally protected from heat, moisture, and aggressive vapours.
Description
- Built-in motor for wall-mounted hoods
- Self-aligning lubricant nozzle
Efficient radial fan for optimal air circulation
Radial fan with a capacity of 10,000 m³ per hour ensures powerful and reliable air delivery. The fan operates at 900 rpm and is particularly quiet. Thanks to the galvanised steel used for the housing and impeller, the fan is robust and durable. The built-in motor is specially designed for wall-mounted hoods and allows for easy installation. Furthermore, the fan is practically maintenance-free.Powerful, energy-efficient and environmentally friendly
This model impresses with its low energy consumption and environmentally friendly operation. The self-aligning lubricant nozzle ensures optimal lubrication and extends the service life. Without a speed controller and feet, the fan is particularly compact and versatile. It is ideally suited for use in air boxes and other ventilation systems that require reliable air supply.Installation & Operation
- ⚠️ The installation should be carried out by a professional to accurately calculate the airflow based on the duct resistance and to install vibration dampers to prevent intolerable vibration noise.
- To prevent possible damage to the motor and/or the device, it is essential to connect the thermal protection to the speed controller, provided the wiring diagram shows two designated lines for this purpose.
- In single-phase motors, the thermal protection is often integrated into the motor, so no external connections to the speed controller are necessary.
- Before commissioning the fan and/or device, always carefully check the electrical connections. These may be located on the fan/device itself or in the terminal box.
- Damage caused by incorrect electrical connections is excluded from the warranty.
Technical data
Dimensions
| Width | 545 mm |
|---|---|
| Depth | 577 mm |
| Height | 626 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air turnover per hour | 10.000 m³ |
| Temperature | -20 °C to 40 °C |
Connected load
| Power | 2,20 kW |
|---|---|
| Voltage | 400V |
| Frequency | 50 Hz |
| Phases | 3N~/PE |
| Amperage | 8,90 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 49 kg |
| Net weight | 41,50 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
