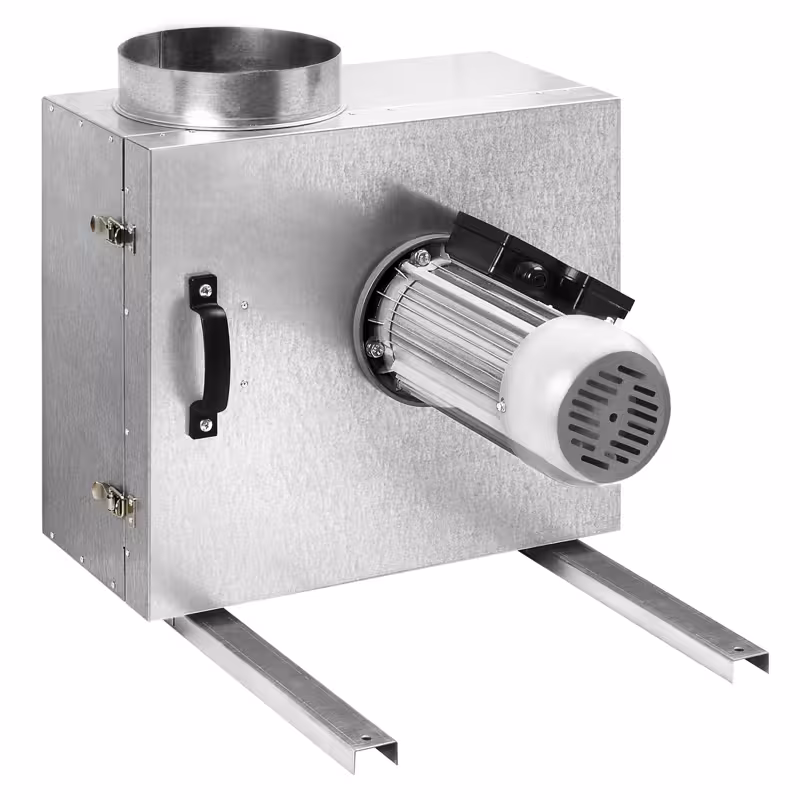

Airbox Pro Commercial Extractor Fan - 3155m³/h - 400V - suitable for commercial charcoal grills
SKU AA3155HTTemperature range: -20 °C to 120 °C
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €1,419.99
** The picture may slightly differ from the original.
Airbox Pro Commercial Extractor Fan - 3155m³/h - 400V - suitable for commercial charcoal grills
SKU AA3155HTTemperature range: -20 °C to 120 °C
Rate now
Print* net price | gross price incl. 0% VAT.: €1,419.99
Accessories (4)
Product Advantages
- Foldable inspection opening: Facilitates maintenance and cleaning through easy access.
- Specifically designed for high temperatures up to 120 °C: Ensures reliable operation even under demanding conditions.
- Perfect for charcoal grills: Optimally adapted to the requirements of charcoal grills for best results.
- TOP performance with low power consumption: Provides efficient performance and saves energy.
Description
- ECO version
- Air inlet already cut out
- Self-supporting structure made of sandwich panels
Efficient ventilation solution for commercial kitchens
The Airbox Pro impresses with its environmentally friendly ECO version and is specially designed for use in commercial kitchens and ventilation systems. With an airflow volume of 3155m³ per hour, it ensures reliable ventilation. The fully insulated construction made of high-quality steel guarantees durability and optimal functionality. The air inlet, already cut out, significantly facilitates installation.Robust design and versatile applications
The self-supporting structure made of sandwich panels provides stability and ease of handling. Thanks to the foldable design, maintenance is straightforward. The Airbox Pro is particularly suitable for charcoal grills and other applications requiring powerful and environmentally friendly ventilation. Its combination of efficiency and sustainability makes it the ideal choice for professional requirements.Installation & Operation
- A grease filter should be installed before the fan to prevent contamination of the impeller.
- Deposits on the impeller can cause imbalance, motor damage, or faults.
- Installation should be carried out so that easy maintenance and repair are possible later.
- Installation on uneven surfaces can lead to housing deformation and operational disturbances.
- When mounted outdoors, protect against weather and water ingress (e.g. with a protective cover).
Cleaning & Maintenance
- If the fan is visibly dirty (a grease layer of more than 1 mm on the blades), we recommend that you engage a technician to carry out the cleaning
Technical data
Dimensions
| Width | 740 mm |
|---|---|
| Depth | 727 mm |
| Height | 764 mm |
Details
| Air turnover per hour | 3.155 m³ |
|---|---|
| Air outlet connection diameter | Ø355 mm |
| Temperature | -20 °C to 120 °C |
| Revolutions per min | 1.379 |
| Noise level | 49 dB |
Connected load
| Power | 405 Watt |
|---|---|
| Voltage | 400V |
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
| Amperage | 0,87 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 59,20 kg |
| Net weight | 59 kg |
