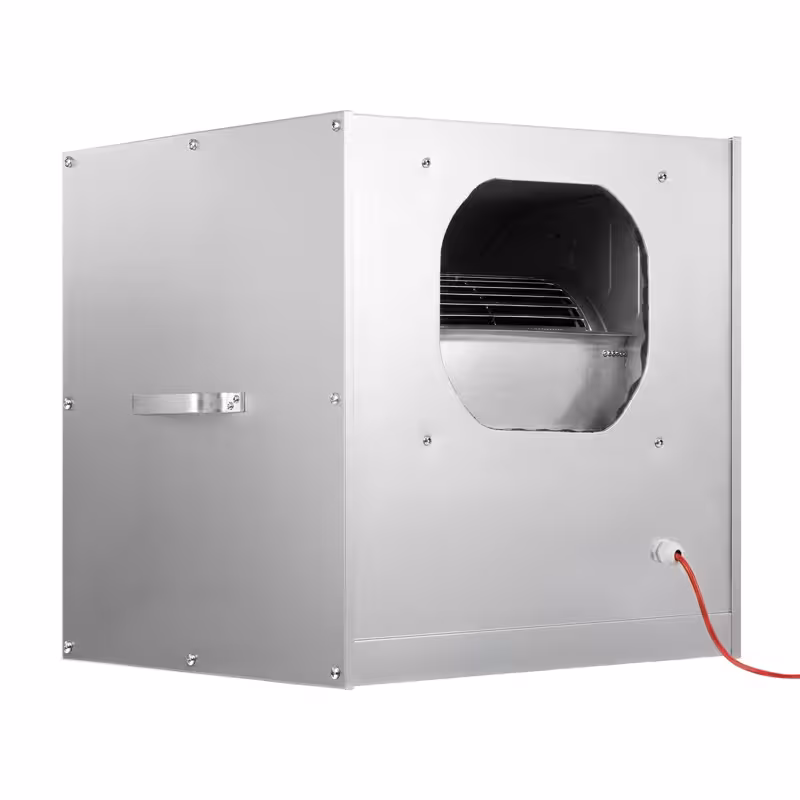

Airbox Commercial Extractor Fan - 2000m³/h - 230V
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Airbox Commercial Extractor Fan - 2000m³/h - 230V
Product Advantages
- TOP performance with low power consumption. This ensures efficient operation with minimal energy costs.
- Flexible inlet design. The closed inlet allows individual adjustment of position and diameter according to site requirements.
Description
- Closed air inlet
- Can be connected directly to a speed controller
- Fully insulated construction made of high-quality steel
Efficient air delivery for commercial and industrial use
The Airbox fan impresses with a high air output of 2000 m³ per hour at 230 volts. It is ideal for use in commercial kitchens and ventilation systems. The fully insulated construction made of high-quality steel ensures durability and safety. Thanks to the closed air inlet, flexible and precise installation is possible.
Reliable control and quiet operation
The fan can be connected directly to a speed controller, allowing precise control of the airflow. The noise level remains low, facilitating use even in noise-sensitive areas. Additionally, the device is designed to be environmentally friendly, offering a sustainable solution for demanding ventilation tasks.
Installation & Operation
- Ensure stable mounting or secure suspension during installation
- Securely fix the centrifugal fan housing, free from vibrations
- Properly connect the ventilation ducts after fixing
- Ensure all connections are tight and sealed
- Carry out installation only in accordance with the installation instructions
Cleaning & Maintenance
- If the fan is visibly dirty (a grease layer of more than 1 mm on the blades), we recommend that you engage a technician to carry out the cleaning
Technical data
Dimensions
| Width | 610 mm |
|---|---|
| Depth | 550 mm |
| Height | 550 mm |
Details
| Air turnover per hour | 2.000 m³ |
|---|---|
| Air outlet connection diameter | Ø315 mm |
| Temperature | -30 °C to 70 °C |
| Noise level | 40,50 dB |
Connected load
| Power | 380 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
| Amperage | 1,80 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 27,20 kg |
| Net weight | 27 kg |
